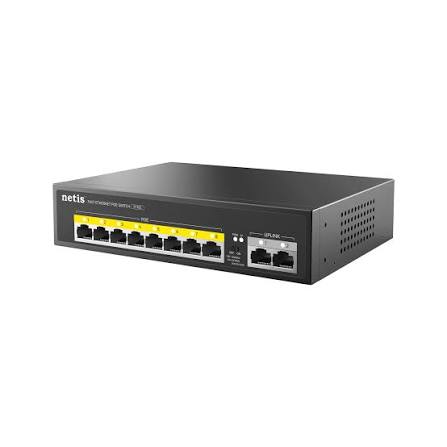

Netis P110C PoE Switch with 8 PoE and 2 Uplink Ports

The Netis P110C PoE Switch powers eight devices and carries their data over ordinary network cables. Moreover, it adds two uplink ports for connecting to your router or core switch. As a result, one compact box can run a whole camera or Wi-Fi network.

Its 120 W power budget supports demanding devices such as PTZ cameras. Furthermore, each PoE port delivers up to 30 W. Therefore, even high-power equipment gets the energy it needs.

In addition, the steel housing and built-in power supply keep the setup tidy. Consequently, the unit suits desks, shelves, and walls.

Single-Cable Power for Cleaner Networks

Traditional devices need a data cable and a power outlet. However, PoE combines both functions into one cable. Therefore, you place devices wherever the signal matters, not where sockets exist. Moreover, fewer cables mean fewer failure points and faster changes later.

The IEEE develops the 802.3af and 802.3at standards behind PoE. Likewise, this switch supports both. As a result, it powers compliant cameras, phones, and access points from different brands. Additionally, standard PoE detection checks each device before power flows.

Why the Netis P110C PoE Switch Suits Growing Networks

Growing networks need more ports and more power without extra complexity. Therefore, this unmanaged switch combines both in a plug-and-play design. Moreover, it needs no software setup.

Eight PoE Ports With Generous Power

Eight 10/100Mbps ports supply data and power together. Furthermore, the total 120 W budget spreads across all eight ports. For example, eight devices drawing 15 W each fit comfortably. Consequently, mixed camera and access point deployments work well. However, add up your device loads first to stay within the budget.

Two Uplink Ports for Flexible Links

Two dedicated uplink ports carry data to routers or other switches. In addition, they leave all eight PoE ports free for powered devices. Explore compatible networking products such as routers and access points to build a complete network. Meanwhile, the uplinks keep the connection to your main network simple.

Extend Mode for Longer Cable Runs

A mode switch toggles between normal and extend operation. In extend mode, ports 1 to 4 reach up to 250 metres. Therefore, distant cameras in car parks or yards stay within reach. However, extend mode runs those links at 10Mbps, so check each device first.

Protection That Keeps Equipment Safe

Power equipment demands solid safeguards. Therefore, this switch includes over-current, over-voltage, and short-circuit protection. Additionally, 4KV surge protection shields the unit from voltage spikes. Likewise, soft start support eases the load from high-power devices. Moreover, sequential boot-up powers devices one after another, which prevents a startup surge.

Steel Housing and Stable Operation

Metal housing improves heat dissipation and durability. Consequently, the switch stays dependable during long hours of use. Furthermore, a PoE watchdog mode monitors the status of powered devices. As a result, the network stays steadier during continuous operation.

Netis P110C PoE Switch Technical Specifications

The list below summarises the main hardware details.

• Brand: Netis
• Model: P110C
• Device type: Unmanaged Fast Ethernet PoE switch
• Total ports: 10
• PoE ports: 8 x 10/100Mbps RJ45
• Uplink ports: 2 x 10/100Mbps RJ45
• PoE standards: IEEE 802.3af and IEEE 802.3at
• Maximum power per PoE port: 30 W
• Total PoE power budget: 120 W
• Ethernet standards: IEEE 802.3, 802.3i, 802.3u, 802.3x
• Switching capacity: 2 Gbps
• MAC address table: 2K entries
• Jumbo frame support: 2048 bytes
• Switching method: Store and forward with non-blocking forwarding
• Cable detection: Auto MDI/MDIX
• Modes: Normal and extend mode
• Cabling: Cat 5e or better, up to 100 m at 100Mbps and up to 250 m in extend mode at 10Mbps
• Power supply: Built-in, AC 110 to 240 V, 50/60 Hz
• Protection: Over-current, over-voltage, short-circuit, and 4KV surge protection
• Housing: Steel
• Dimensions: 190 x 140 x 43 mm
• Operating temperature: 0°C to 40°C
• Operating humidity: 10% to 90% RH, non-condensing
• Mounting: Desktop or wall-mountable

For official product details, visit the Netis Systems website.

Practical Use Cases

Netis P110C PoE Switch for Surveillance Systems

Security cameras form the main use for this switch. Therefore, eight cameras can run from a single unit. Moreover, 30 W per port supports PTZ models that need extra power. Consequently, you can cover entrances, aisles, and perimeters from one cabinet. In addition, Axis Communications publishes PoE guidance for network cameras.

Wireless Access Points for Better Coverage

Ceiling access points rarely sit near sockets. Therefore, PoE places them exactly where coverage works best. Likewise, the Wi-Fi Alliance explains how access point placement affects signal quality. As a result, offices, cafes, and clinics gain stronger wireless coverage.

Retail Shops and Restaurants

Shops need cameras, Wi-Fi, and payment equipment working together. In that case, this switch powers cameras and access points while the uplink serves the rest. Furthermore, staff can place point of sale devices on the same wired network. Meanwhile, the compact body fits behind counters and inside small cabinets.

Offices and Warehouses

Warehouses need wide camera coverage and reliable wired links. Moreover, the steel housing and surge protection cope with demanding spaces. Additionally, teams can keep recordings on dependable storage connected to the network.

Schools and Clinics

Schools and clinics need quiet, tidy network equipment. Therefore, a single switch can power cameras, access points, and phones in one room. Likewise, wall-mount capability keeps floors and desks clear.

Netis P110C PoE Switch Compatibility

This switch works with any IEEE 802.3af or 802.3at powered device. Moreover, standard Ethernet devices connect to the same ports and receive data only. Because PoE detection runs first, those devices stay safe.

Cameras, Phones, and Access Points

IP cameras, VoIP phones, and wireless access points all work here. However, each device must stay within 30 W per port. Likewise, the combined draw must stay under the 120 W budget. Additionally, Cat 5e or better cable supports links up to 100 metres.

Routers and Upstream Switches

The uplink ports connect to routers, firewalls, and larger switches. Furthermore, Auto MDI/MDIX adapts to the cable type automatically. Therefore, straight and crossover cables both work. Meanwhile, store-and-forward switching supports reliable data delivery. However, the unit is unmanaged, so it offers no VLAN features.

Reliable Quality Backed by Standards

Customers trust Aiconic Computers for PoE hardware that follows recognised standards. This switch complies with IEEE 802.3af and 802.3at, so it delivers dependable power and data. Furthermore, its steel housing, 4KV surge protection, and multiple safeguards reflect solid build quality. We stand behind product quality fully. In addition, we process orders quickly, so customers receive their products promptly. As a result, businesses can power cameras and access points without long waits.
