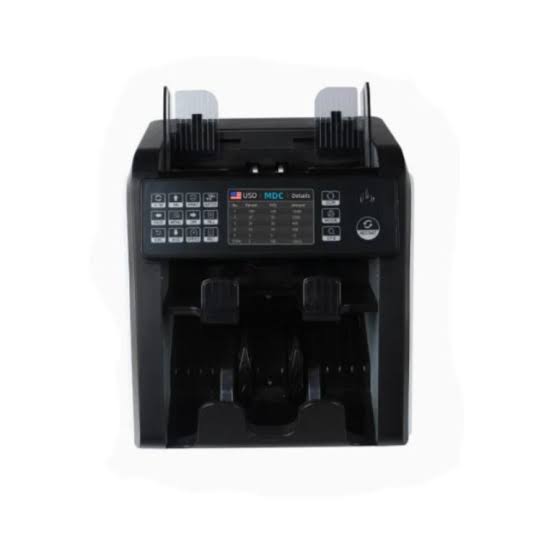

Premax PM-VC210 Cash Counting Machine

The Premax PM-VC210 Cash Counting Machine counts continuously while a reject pocket catches doubtful notes. Moreover, its dual-pocket design keeps the count moving without stops for note removal. In addition, it identifies currencies automatically and counts mixed denominations together. Furthermore, two image sensors and three other detectors inspect every note. As a result, operators spend less time interrupting counts and more time finishing them. Therefore, banks, exchange houses, and large retailers gain a fast, flexible counting station. Meanwhile, a touchscreen keeps every control simple and visible.

Dual Pockets for Non-Stop Counting

First, the main stacker pocket collects up to 200 accepted notes. Meanwhile, the separate reject pocket holds up to 100 flagged notes. Consequently, suspicious or unreadable notes leave the main stream automatically.

In addition, a 500-note hopper feeds the roller friction system steadily. As a result, large bundles process in one continuous run.

Likewise, counting speeds of 800, 1000, and 1200 notes per minute suit different note conditions. Therefore, teams match speed to bundle quality without changing machines.

Premax PM-VC210 Cash Counting Machine Reject Pocket Advantage

First, ordinary counters stop whenever they detect a questionable note. Then, the operator removes the note and restarts the count. In contrast, this model diverts such notes into the reject pocket and keeps counting.

Consequently, a bundle of mixed-quality notes finishes in a single pass. Afterwards, the operator reviews the rejected notes together at the end.

Therefore, queues shorten and counting rhythm stays smooth.

Why Continuous Counting Raises Throughput

Traditionally, every flagged note forces a full stop. Consequently, a bundle with several doubtful notes takes many pauses. In contrast, continuous counting removes those pauses completely.

Moreover, the operator checks rejected notes once, after the run ends. Therefore, throughput rises during peak periods without extra staff.

Likewise, the process feels calmer because counts rarely stop unexpectedly. As a result, staff concentrate on accuracy instead of constant interruptions. Overall, the dual-pocket concept suits every high-volume counting room.

Smart Sorting by Face, Orientation, and Denomination

Moreover, sorting modes organise notes by face, orientation, version, or denomination. For example, a teller can stack every note facing the same direction. Likewise, version sorting separates older and newer note designs.

Additionally, denomination sorting groups notes by value for tidy bundling. Meanwhile, automatic currency identification handles multi-currency mixed counting.

Consequently, staff avoid slow, repetitive manual arrangement of banknotes. Therefore, deposits leave the counting desk ready for the bank or the vault.

Detection With Two CIS Image Sensors

First, two contact image sensors capture detailed pictures of each note. Meanwhile, ultraviolet sensors check fluorescent security features. Likewise, magnetic sensors verify magnetic ink in genuine notes.

In addition, infrared sensors reveal printed patterns that normal light hides. Furthermore, the machine recognises half notes, double notes, and chained notes.

Moreover, serial number recognition records each note’s identifier for traceability. Consequently, every bundle undergoes a thorough, multi-layer inspection.

Premax PM-VC210 Cash Counting Machine Touchscreen and Keypad

First, a bright touchscreen presents counts, modes, and alerts clearly. Next, a touch keypad adds quick number entry for batch sizes. Consequently, operators move between functions with minimal effort.

Moreover, an external display interface supports a second screen for customers. Likewise, offices that value clear screens often choose quality Monitors for their other workstations.

Therefore, both staff and customers follow the count together.

Technical Specifications

Below, you find the core hardware details for this counter.

• Brand: Premax
• Model: PM-VC210
• Type: Dual-pocket multi-currency counting machine
• Hopper capacity: 500 notes
• Stacker capacity: 200 notes
• Reject pocket capacity: 100 notes
• Feed system: Roller friction
• Counting speed: 800, 1000, or 1200 notes per minute
• Display: Touchscreen with touch keypad
• Detection: UV, MG, IR, and two CIS image sensors
• Note checks: Half, double, and chained notes
• Currency functions: Auto identification and mixed counting
• Sorting: Face, orientation, version, and denomination
• Other functions: Add, batch, reporting, printing, serial number recognition
• Interfaces: USB, printing, external display, RS-232, RJ-11
• Software update: Through USB port
• Dimensions: 245 x 270 x 280 mm

Altogether, these specifications favour continuous, high-accuracy counting rooms.

Premax PM-VC210 Cash Counting Machine Use Cases for Cash Operations

In practice, high-volume cash operations gain the most from dual-pocket counting.

Large Retail Chains

For example, chain stores consolidate cash from many branches at a central counting room. Meanwhile, non-stop counting keeps long queues of bundles moving. Consequently, branch totals reach head office quickly and consistently.

Banking Halls and Cash Centres

Likewise, banking halls handle deposits in many currencies and conditions. Therefore, the reject pocket separates damaged notes without stopping the count. Moreover, reports document each count for audit purposes.

Currency Exchange Houses

Similarly, exchange houses receive notes from travellers around the clock. Because the machine identifies currencies automatically, staff process mixed bundles faster. Thus, customers wait less at the counter.

Casinos and Betting Shops

Furthermore, casinos and betting shops count heavy cash volumes each night. Meanwhile, detection and serial number recognition add layers of control. Therefore, supervisors reconcile shifts with greater confidence.

Payment Collection Offices

Additionally, utility and service providers collect cash payments at busy front desks. Consequently, fast counting shortens waiting times for customers. Likewise, printed reports confirm each collection clearly.

A Counting Routine for New Operators

First, the operator chooses a counting or sorting mode on the touchscreen. Next, the operator places the bundle into the hopper. Then, sensors inspect each note while the display tracks the count.

Meanwhile, flagged notes drop quietly into the reject pocket. Afterwards, the operator removes the accepted notes and the rejects separately.

Finally, the operator prints or records the session report. Therefore, new employees learn the full routine in a short session.

Premax PM-VC210 Cash Counting Machine Connectivity and Compatibility

First, the machine provides RS-232, USB, and RJ-11 interfaces. Meanwhile, the RJ-11 port follows the registered jack standard used for peripherals. In addition, a dedicated printing interface connects compatible printers for reports.

Likewise, teams that run Point of sale devices integrate the counter into the checkout workflow. Furthermore, software updates run through the USB port.

Consequently, the machine stays current as currency designs change. Moreover, it suits most currencies used around the world.

Reports, Printing, and Records

Notably, add and batch functions combine counts and prepare standard bundles. Additionally, reporting functions summarise each session in a clear format. Meanwhile, office Printers produce hard copies for supervisors and auditors.

Therefore, each count leaves a clear trail from the first bundle to the final total. Likewise, serial number recognition strengthens that trail for sensitive deposits.

Consequently, audits become faster and disputes become rarer.

Compact Frame and Open Channel Design

Overall, the machine measures 245 x 270 x 280 mm. Therefore, it fits comfortably on counting desks and teller counters. Meanwhile, the open channel design gives operators easy access to the note path.

As a result, clearing and cleaning take only moments. Furthermore, the sturdy build supports long counting shifts.

Consequently, teams rely on it from the first bundle to the last.

Standards You Can Rely On

Overall, Aiconic Computers supplies cash handling equipment that meets strict quality standards. Likewise, this machine combines dual-pocket counting, dual-sensor imaging, and flexible connectivity. Furthermore, we stand behind product quality fully. We also ensure customers receive their products promptly. Therefore, banks, retailers, and exchange houses trust us for every cash counter they add.
