TP-Link TL-R480T+ Load Balance Broadband Router

The TP-Link TL-R480T+ Load Balance Broadband Router unites multiple internet lines behind one rack-ready gateway. It supports up to four WAN ports for flexible connectivity. Moreover, it shares traffic across lines to maximise bandwidth. Therefore, growing teams enjoy steady speed and dependable uptime.

Business Networking Built Around Choice

Different providers excel at different things. For instance, one line may offer speed while another offers stability. This router uses both together. As a result, you stop paying for idle backup capacity. Therefore, total capacity grows with each added line. Browse complementary Networking products to extend your network.

Features of the TP-Link TL-R480T+ Load Balance Router

This model targets busy business networks. Specifically, it handles up to 30,000 concurrent sessions. Furthermore, 8MB of flash and 64MB of DRAM support smooth operation. TP-Link also built in protection against lightning surges up to 4kV.

Rack-Ready Hardware

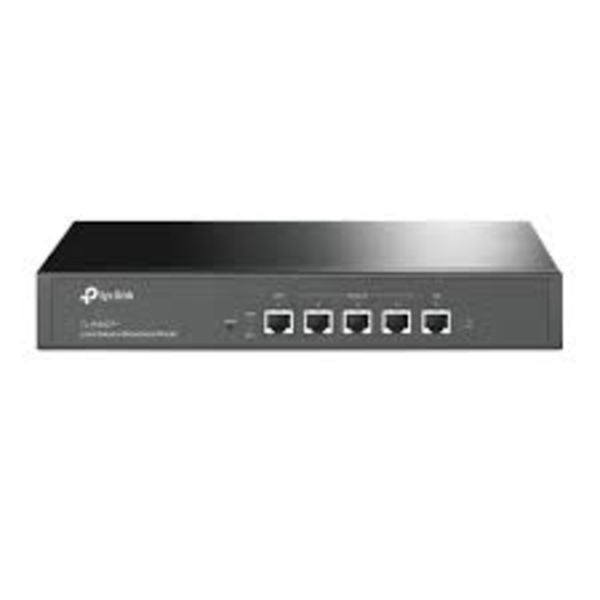

The slim body measures 294 x 180 x 44mm. It meets the 13-inch rack-mount width at 1U height. Consequently, it fits neatly into a network cabinet. Alternatively, it sits on any desk.

Four WAN Lines, One Gateway

Three changeable ports accept either LAN or WAN duty. Consequently, you pick two, three, or four WAN lines. Intelligent load balancing then selects the best route using load and bandwidth. Additionally, link backup supports timing and failover modes.

Technical Specifications of the TP-Link TL-R480T+ Load Balance Router

The router follows IEEE 802.3 standards for reliable wired performance.

• Model: TL-R480T+
• Standards: IEEE 802.3, 802.3u, 802.3x
• Ports: 1 fixed WAN, 1 fixed LAN, 3 changeable WAN/LAN
• Network Media: UTP Category 5/5e cable up to 100m
• Memory: 8MB flash, 64MB DRAM
• Concurrent Sessions: 30,000
• WAN Types: Static/Dynamic IP, PPPoE, PPTP, L2TP, Dual Access
• Forwarding: Virtual Server, Port Triggering, DMZ
• Load Balance: Policy Routing, Link Backup
• Power: Internal universal supply, 100-240V AC
• Dimensions: 294 x 180 x 44mm, 1U
• Package Contents: router, power cord, Ethernet cable, guide, rack-mount kit

Practical Uses for the TP-Link TL-R480T+ Load Balance Router

Schools and Training Centres

Computer labs need fair, steady access for every learner. Therefore, administrators balance heavy classroom traffic across several lines. Labs full of Desktops stay responsive during peak hours. Moreover, rules can block specific websites in one click.

Growing Businesses

Companies sync files, run backups, and host video calls daily. As a result, a failed line should never stall these tasks. Offices using shared Storage benefit from consistent access. Meanwhile, bandwidth rules keep critical applications ahead of casual browsing.

Protection and Policy Control

The router automatically detects and blocks denial-of-service attacks. CISA describes how such attacks disrupt organisations. Additionally, IP, MAC, URL, and web filtering stop intruders and viruses. Administrators can also block IM and P2P applications with one click. One-click ALG options support common protocols without complicated rules.

Management Made Straightforward

A web-based utility guides every configuration task. Therefore, small teams manage the router without specialist training. Additionally, the PPPoE server supports client account management. Port mirroring, rate control, and port VLAN features add flexibility. DHCP and NAT, standardised by the IETF, keep addressing simple.

Works With Your Current Gear

Any modem with an Ethernet output connects to the WAN ports. Consequently, you keep your existing providers. Switches and wireless access points then extend the LAN. Dual access modes also support special provider setups.

Why Choose the TP-Link TL-R480T+ Load Balance Router

Aiconic Computers supplies the TL-R480T+ as a quality networking product from a respected brand. We stand behind product quality fully. Moreover, we ensure customers receive their orders promptly. Our team selects devices that meet recognised industry standards, including IEEE 802.3 compliance. Likewise, every router we sell comes from trusted TP-Link supply. As a result, shoppers trust Aiconic Computers for dependable products and swift delivery.
