Netis ST3105GC 5 Port Gigabit Ethernet Switch

The Netis ST3105GC 5 Port Gigabit Ethernet Switch upgrades small networks to full 1000Mbps wired speed. Moreover, five auto-negotiating ports connect computers, consoles, printers, and cameras. In addition, a non-blocking design with 10Gbps switching capacity keeps traffic flowing freely. As a result, large files, 4K videos, and game updates move quickly. Furthermore, Green Ethernet technology reduces power use when ports sit idle. Therefore, homes, studios, and small offices gain speed without extra complexity. Meanwhile, a patented safety lock keeps cables secure during daily use.

Gigabit Speed on Every Port

First, each port negotiates 10, 100, or 1000Mbps automatically. Consequently, modern gigabit devices run at full speed while older gear still works. Moreover, Gigabit Ethernet moves data ten times faster than Fast Ethernet.

In addition, full-duplex mode delivers 2000Mbps of combined throughput per port. As a result, backups, downloads, and streams finish far sooner.

Likewise, fast ports make full use of modern broadband connections. Therefore, the network stops being the slowest link in your setup.

Netis ST3105GC 5 Port Non-Blocking Architecture

First, a 10Gbps switching fabric exceeds the combined speed of all five ports. Consequently, the switch never becomes the bottleneck, even when every port runs flat out. Meanwhile, wire-speed forwarding passes frames along without delay.

In addition, a 2K MAC address table learns and ages entries automatically. Therefore, devices find one another quickly across the local network.

Likewise, store-and-forward switching checks each frame for errors first.

How Gigabit Differs From Fast Ethernet in Practice

First, Fast Ethernet tops out at 100Mbps per port. In contrast, gigabit ports reach 1000Mbps, which is ten times faster. For example, a 10GB video folder can copy in roughly 90 seconds under ideal conditions.

Meanwhile, the same folder needs more than 13 minutes over Fast Ethernet. Consequently, gigabit transforms workflows that handle large media or backups.

Likewise, real-world speeds depend on cables, devices, and storage drives. Therefore, every link in the chain should support gigabit for full benefits. Overall, a gigabit switch removes one common bottleneck.

Jumbo Frame Support for Large Transfers

Notably, the switch forwards 9216-byte jumbo frames at wire speed. Consequently, large data blocks travel in fewer, bigger packets. Moreover, fewer packets reduce processing work for connected devices.

As a result, storage backups and media transfers run more efficiently. However, every device on the path must support jumbo frames to benefit.

Therefore, owners enable the feature on compatible equipment for the best results.

Green Ethernet and Diamond Ventilation

First, Green Ethernet technology saves power by adjusting energy use to link activity. Meanwhile, a diamond-shaped ventilation pattern promotes better airflow. Consequently, heat dissipates faster and components run cooler.

In addition, the fanless body keeps operation completely silent. Therefore, the switch suits bedrooms, studios, and quiet offices.

Likewise, cooler operation extends the useful life of the hardware.

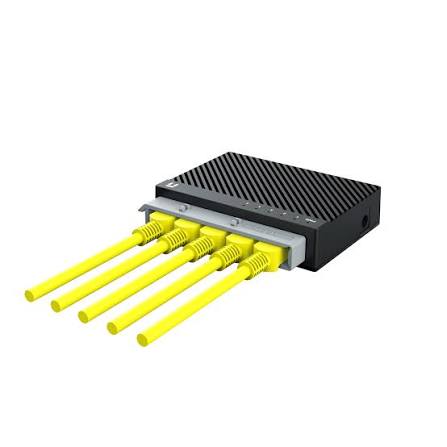

Separated Safety Lock for Stable Plugs

First, loose or broken modular plugs cause many network failures. Consequently, Netis designed a patented separated safety lock to hold plugs firmly. Moreover, the lock guards against dropped connections and sudden lag.

In addition, it protects important links to storage, cameras, and workstations. Therefore, stable data transmission continues even in busy rooms.

Netis ST3105GC 5 Port Flow Control and Duplex Modes

First, IEEE 802.3x flow control manages full-duplex traffic during heavy bursts. Meanwhile, back pressure protects half-duplex connections from overload. Consequently, packets rarely drop when several devices transmit together.

Moreover, every port supports both half-duplex and full-duplex operation. Therefore, legacy equipment and modern devices coexist peacefully.

Technical Specifications

Below, you find the essential hardware details for this switch.

• Brand: Netis
• Model: ST3105GC
• Type: Unmanaged Gigabit Ethernet switch
• Ports: Five 10/100/1000Mbps RJ45 ports
• Port features: Auto-negotiation, Auto MDI/MDIX
• Architecture: Non-blocking
• Switching capacity: 10Gbps
• Jumbo frames: Up to 9216 bytes
• MAC address table: 2K entries
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x
• Full-duplex rates: 20, 200, and 2000Mbps
• Cabling: UTP Cat5 or better
• Energy saving: Green Ethernet
• Indicators: Power and LAN1 to LAN5
• Power supply: DC 5V/600mA
• Dimensions: 85 x 75 x 22 mm
• Housing: Plastic, fanless, with safety lock
• Mounting: Desktop or wall
• Certification: FCC and CE
• Operating temperature: 0°C to 40°C

Altogether, this specification list describes a fast, silent, and dependable gigabit switch.

Netis ST3105GC 5 Port Use Cases for Home and Work

In practice, gigabit speed benefits many everyday setups.

Home Offices and NAS Backups

For example, home offices back up large folders to network-attached storage. Meanwhile, gigabit links finish those backups in a fraction of the time. Consequently, professionals protect their work without waiting around.

Gaming and Streaming Setups

Likewise, console players and streamers value fast, stable wired connections. Moreover, pairing the switch with quality Gaming products creates a responsive play corner. Therefore, downloads, updates, and matches run smoothly together.

IP Camera Systems

Furthermore, IP cameras stream high-resolution video across the network. Therefore, gigabit ports handle several camera feeds without strain. However, cameras needing PoE require a separate PoE switch.

Creative Studios and Editing Desks

Additionally, editors move heavy video and photo files between workstations. Consequently, shared project folders open quickly over gigabit links. Thus, creative teams stay productive during tight deadlines.

Small Reception and Retail Counters

Beyond studios, reception desks connect computers, printers, and scanners together. Meanwhile, the compact body fits tight counters easily. Therefore, front-desk teams enjoy dependable connections.

Netis ST3105GC 5 Port Compatibility With Cables and Devices

Fortunately, any standard Ethernet cable connects devices to the switch. Specifically, UTP Cat5 or better supports 100Mbps and 1000Mbps links. Moreover, Category 6 cable offers extra headroom for demanding runs.

In addition, Auto MDI/MDIX removes any need for crossover cables or uplink ports. Consequently, PCs, printers, smart televisions, consoles, and cameras connect with ordinary cables.

Likewise, Desktops with gigabit network cards enjoy the full port speed. However, the switch is unmanaged and lacks VLAN and PoE features. Therefore, advanced networks should consider a managed gigabit model.

Who Benefits Most From Gigabit Speeds

First, anyone who moves large files across a local network gains immediately. Likewise, households with several streaming devices notice smoother playback. Meanwhile, gamers appreciate reliable wired links for updates and cloud play.

However, basic web browsing rarely needs more than Fast Ethernet. Therefore, buyers should match the switch to their heaviest tasks.

Meanwhile, shoppers exploring other Networking products can compare switch sizes and speeds. Overall, gigabit ports prepare the network for future devices.

Compact Plastic Desktop Design

Overall, the switch measures only 85 x 75 x 22 mm. Therefore, it fits on desks, shelves, and media cabinets without fuss. Moreover, a wall-mounted option frees valuable surface space.

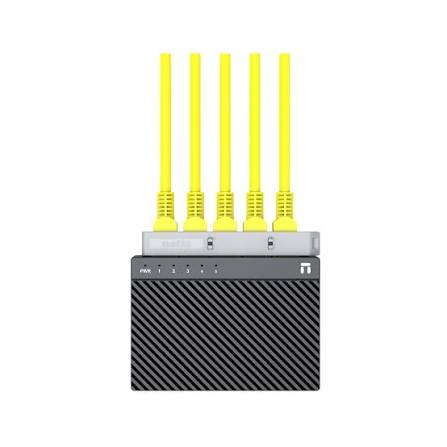

Meanwhile, LED indicators show power and activity for each port. Consequently, owners identify active connections at a glance.

Everyday Operation Without Configuration

First, users connect the power adapter and plug in devices. Then, each port detects speed and cable type automatically. Consequently, no software, menus, or passwords complicate daily use.

Moreover, the switch behaves predictably, which suits non-technical users. Therefore, anyone expands a wired network confidently.

Standards You Can Rely On

Overall, Aiconic Computers supplies networking equipment that meets strict quality standards. Likewise, this switch delivers gigabit ports, non-blocking performance, and quiet operation. Furthermore, we stand behind product quality fully. We also ensure customers receive their products promptly. Therefore, homes, studios, and offices trust us for every switch they add.
