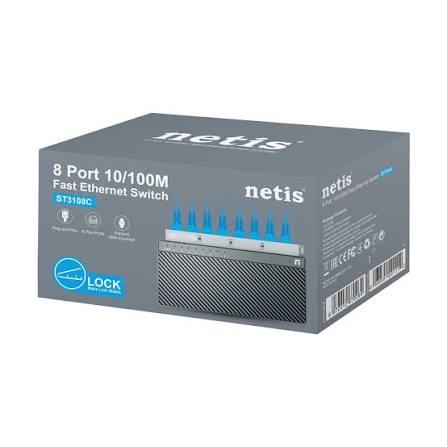

Netis ST3108C 8 Port Fast Ethernet Switch

The Netis ST3108C 8 Port Fast Ethernet Switch gives small networks eight reliable 10/100Mbps connections. Moreover, Green Ethernet technology cuts power use by up to 70 percent. In addition, a fanless plastic body keeps operation completely quiet. As a result, bedrooms, classrooms, and offices stay free from fan noise. Furthermore, a separated safety lock protects cables against loose or broken plugs. Therefore, homes, dormitories, and surveillance systems gain stable network expansion. Meanwhile, plug and play operation keeps daily use simple.

Eight Ports for Growing Wired Networks

First, small networks outgrow router ports quickly. Consequently, extra computers, printers, and cameras need additional connections. In contrast, this switch adds eight RJ45 ports in one compact unit.

Moreover, each port adapts automatically to the speed of its device. Therefore, old and new equipment share the network without conflicts.

Likewise, buyers browsing other Networking products often add a switch to complete the wired side. As a result, cable clutter shrinks and organisation improves.

Netis ST3108C 8 Port Switching Performance

First, the switching fabric reaches 1.6Gbps across all eight ports. Consequently, traffic between devices flows without internal bottlenecks. Moreover, a 2K MAC address table remembers many connected devices.

In addition, store-and-forward switching checks each frame before sending it onward. Likewise, full-duplex mode offers up to 200Mbps per port.

Therefore, simultaneous uploads and downloads proceed without collisions.

Green Ethernet Energy Savings

First, Green Ethernet technology reduces power consumption by up to 70 percent. Specifically, the switch adjusts power according to cable length and link status. Consequently, idle ports and short cables draw less energy.

Moreover, Energy-Efficient Ethernet follows the same principle of dynamic power adjustment. As a result, the switch stays cooler and gentler on the environment.

Furthermore, lower energy use reduces heat inside cabinets and cupboards. Therefore, always-on networks run efficiently day and night.

Fanless Quiet Design With Smart Ventilation

First, the switch uses passive cooling instead of a noisy fan. Consequently, libraries, bedrooms, and meeting rooms stay silent. Meanwhile, a diamond-shaped ventilation pattern promotes better airflow.

In addition, improved heat dissipation helps prevent overheating. Therefore, the switch stays dependable through long working days.

Likewise, the plastic case looks modern and keeps weight low.

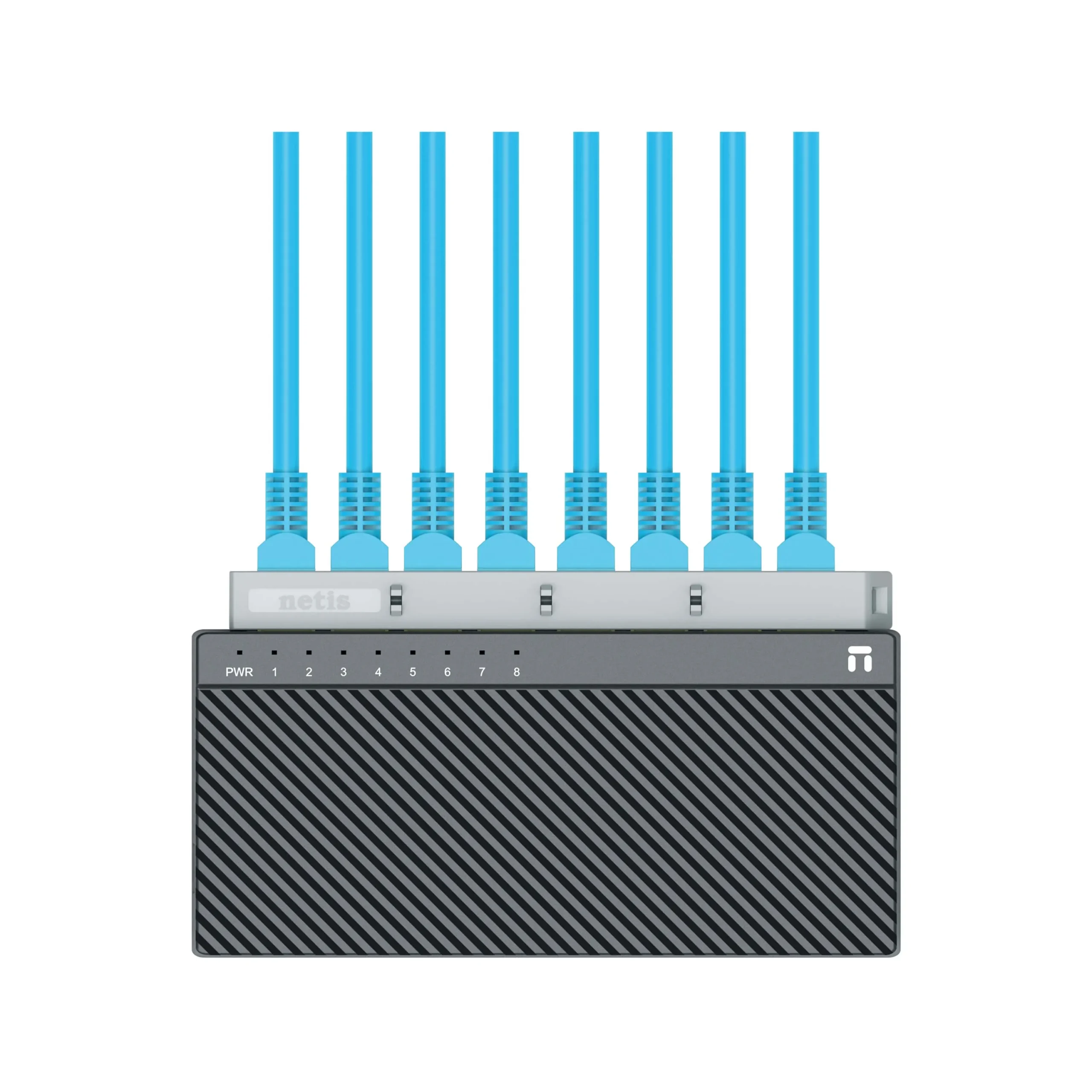

Separated Safety Lock and 8-Pin Ports

Notably, Netis patented a separated safety lock for network cables. Consequently, loose or broken modular plugs cause fewer network failures. Moreover, eight-pin ports enhance data transmission speed and stability.

In addition, the lock keeps cables fixed in busy workspaces. Likewise, fixed cables protect sensitive devices such as cameras and tills.

Therefore, staff and students can move around without disconnecting devices.

Netis ST3108C 8 Port Flow Control Reliability

First, IEEE 802.3x flow control prevents buffers from overflowing during traffic bursts. Consequently, data transfers stay accurate even when several devices send at once. Meanwhile, the CSMA/CD access method manages half-duplex connections properly.

Additionally, back pressure helps half-duplex devices avoid overloading the switch. Therefore, file transfers, printing, and streaming proceed reliably.

Why Unmanaged Switches Stay Popular

First, unmanaged switches need no technical knowledge. Consequently, anyone expands a network in moments. Moreover, fewer features mean fewer settings that can go wrong.

Likewise, the switch behaves predictably in every environment. In addition, no menus means no accidental changes by curious users.

However, advanced needs such as VLANs call for managed models. Therefore, this switch suits straightforward networks perfectly. Overall, simplicity remains a powerful advantage.

Technical Specifications

Below, you find the principal hardware details for this switch.

• Brand: Netis
• Model: ST3108C
• Type: Unmanaged Fast Ethernet switch
• Ports: Eight 10/100Mbps RJ45 ports
• Port features: Auto-negotiation, Auto MDI/MDIX
• Chipset: RTL8309N
• Standards: IEEE 802.3, 802.3u, 802.3x
• Access method: CSMA/CD
• Transmission method: Store and forward
• Switching capacity: 1.6Gbps
• MAC address table: 2K
• Full-duplex bandwidth: Up to 200Mbps per port
• Energy saving: Green Ethernet, up to 70%
• Indicators: Power and ports 1 to 8
• Power supply: DC 5V/600mA
• Dimensions: 88 x 63 x 21 mm
• Housing: Plastic, fanless
• Mounting: Desktop or wall
• Certification: FCC and CE
• Operating temperature: 0°C to 40°C
• Operating humidity: 5% to 90% non-condensing

Altogether, these figures describe a quiet, efficient, and dependable desktop switch.

Netis ST3108C 8 Port Use Cases for Busy Workspaces

In practice, eight ports suit many everyday environments.

Training Labs and Cyber Cafes

For example, training labs link rows of computers to a central switch. Meanwhile, the silent operation keeps classrooms calm. Consequently, instructors and learners focus on lessons.

Clinics and Pharmacies

Likewise, clinics connect reception computers, label printers, and record systems. Moreover, steady wired links protect important records during busy hours. Therefore, patient flow stays smooth and organised.

Retail Back Rooms

Additionally, shops connect stock computers and Point of sale devices to one switch. Meanwhile, wall-mounting keeps the switch out of the way. Thus, sales and stock data stay synchronised.

Home Labs and Media Rooms

Furthermore, enthusiasts connect servers, storage, consoles, and televisions together. Likewise, full-duplex links keep media streams smooth. Therefore, living rooms enjoy dependable entertainment networks.

Dormitories and Surveillance Systems

Beyond shops, dormitories share one wall port among several devices. Similarly, cameras and recorders connect through stable wired links. As a result, monitoring and study continue without interruption.

Netis ST3108C 8 Port Compatibility With Cables and Devices

Fortunately, routers, computers, printers, cameras, and televisions all connect without special drivers. Moreover, Category 5 cable supports 100Mbps Ethernet reliably. Likewise, Cat5e and Cat6 cables work equally well.

In addition, Auto MDI/MDIX removes the need for crossover cables or uplink ports. Consequently, any port serves as an uplink to a router or another switch.

Meanwhile, modern Laptops with Ethernet ports connect directly for stable work sessions. However, the switch is unmanaged, so it offers no VLAN or PoE features. Therefore, buyers who need VLANs or camera power should choose a managed PoE model.

Simple Daily Operation for Any User

First, users power the switch and plug in their devices. Then, the switch detects each link and sets the right speed. Next, the LED row shows power and activity for every port.

Consequently, anyone spots a disconnected device immediately. Moreover, no software, menus, or passwords complicate daily use.

Therefore, non-technical users manage their network confidently.

Planning a Small Network Around Eight Ports

First, owners count the devices that need wired connections. Next, they reserve one port for the uplink to the router. Then, seven ports remain for computers, printers, and cameras.

Meanwhile, additional switches can extend the network further. Likewise, a clear cable plan keeps the layout tidy.

Therefore, labelled cables simplify future changes. Overall, careful planning turns eight ports into a flexible foundation.

Desktop and Wall Placement

Overall, the switch measures just 88 x 63 x 21 mm. Therefore, it slips onto desks, shelves, and cabinet tops easily. Moreover, the design also allows wall mounting where space is tight.

Meanwhile, a 5V/600mA adapter keeps power demands low. Consequently, the switch fits comfortably in crowded spaces.

Standards You Can Rely On

Overall, Aiconic Computers supplies networking equipment that meets strict quality standards. Likewise, this switch delivers eight adaptive ports, Green Ethernet savings, and silent operation. Furthermore, we stand behind product quality fully. We also ensure customers receive their products promptly. Therefore, labs, clinics, and shops trust us for every switch they add.
